    BAS 13095

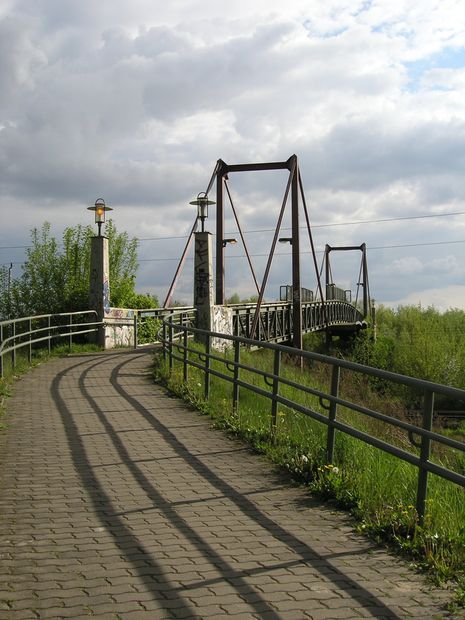

    Margaret Bridge
    Brückenbild

    © Inge Kanakaris-Wirtl (www.kanakari-photos.com)

    Nachfrage / demandUse only on request
    EU Fuß- und Radweg Astridweg

    EU Fuß- und Radweg Astridweg

    24.8.07

    © Helmut Fischer

    Nachfrage / demandUse only on request
    EU Fuß- und Radweg Astridweg

    EU Fuß- und Radweg Astridweg

    24.8.07

    © Helmut Fischer

    Nachfrage / demandUse only on request
    To Bridge Images
    Germany
    Berlin
    Berlin-Hohenschönhausen
    Malchow
    Railway
    Pedestrian
    Reins belt bridge
    Steel
    1992
    0.00 m
    66.40 m
    2.90 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    490.00 m2
    in operation
    <br>Span: 11,20 m; 11,20 m; 16.00 m; 11,20 m; 11,20 m<br><br>Static system: by two pylons guyed lattice girder with hinged box girder. Pylons elastic clamped, fixed points on the abutments.<br><br>The Margaret Bridge (replacement bridge) crosses the Northern Berlin outer ring as a pedestrian overpass in Hohenschönhausen.

 The pylons of the bridge are made conical box profiles are stabilized with welded cross associations. The suspensions are attached with bolts. The abutments are tensile bearing; elastomeric bearing guides longitudinally are built on the pylon (carriers). The superstructure consists of a timber trough from steel profiles, welded main and cross beams and a HV screwed wind bracing. The Zwischenlängsträger are made of pine with pine wood plank screwed-on.

 The bridge was fitted on both sides with an integrated additional handrail for the disabled. Wooden planks as handrail were screwed onto the upper belts of the truss. Above the existing mainline tracks, horizontal sheds were attached to the lower straps. The subsequent is prepared Assembly of protective roofs through corresponding holes in the area of the planned rail extension.

 The lighting is done with two TRILUX approach lights on the pylons and in the area of the abutment. The ramps were with a total of 6 TRILUX floor lamps (H = 4,00 m) equipped.<br><br>Construction cost: 2.500.000 DM
