    BAS 2555
    Large berry bridge
    Brückenbild

    © Frank Sellke / brueckenweb.de

    gegen Entgeld / for a feeUse in accordance with the terms and conditions
    Bild 1

    15.01.2008

    © Helmut Fischer

    Nachfrage / demandUse only on request

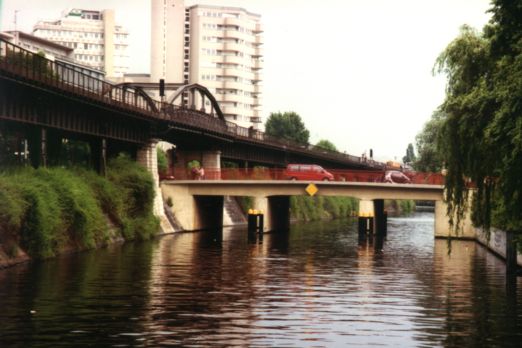

    Bild 2

    09.07.2011

    © Frank Sellke / brueckenweb.de

    gegen Entgeld / for a feeUse in accordance with the terms and conditions
    To Bridge Images
    Germany
    Berlin
    Berlin
    Landwehr Canal
    Street
    Girder bridge
    Concrete
    1924/25
    8.32 m
    0.00 m
    9.80 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    0.00 m2
    in operation
    smallest bridge over the Landwehrkanal<br><br>From 1869 to 1870 on request and cost of the pianoforte manufacturers Theodor Stöcker as wooden girder bridge built, she led the Großbeerenstraße in three arches over the Landwehrkanal. The bridge named after the Großbeerenstraße was rebuilt in 1924/25 as steel concrete t-beams with four columns. The central opening was 8.32 m and the side holes 5.45 m and 5.48 m. A 9.80 m wide carriageway and 3.63 m or 2.42 m wide sidewalks convict G. 1945 she was severely damaged by explosives. A temporary footbridge over the destroyed bridge helped in the early post-war years. 1949/50 G. as steel concrete beam bridge has been restored according to the original system. The release of concrete bridge was with simple red iron railing on the 29.06.1950.<br><br>Information provided by www.luise-berlin.de
